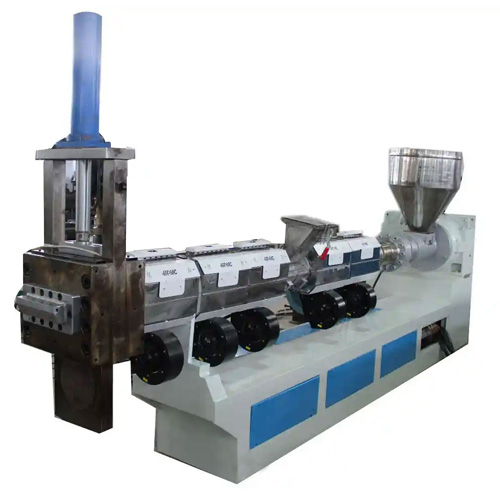

HPMC's Vented Type Extruders are specifically designed for Degassing or Devolatilization purposes;thus adding to the functional capability of polymers.
Materials that can be processed from this plant : PP, LD, HD, PE, HIPS, PS, ABS, PMMA, PC, PA and all types of engineering plastic.
With many years of design,manufacturing experience and adopting international advanced technology,our company has developed different series of extruder on the basis of accepting the users' suggestions.The special high-efficiency venting screws for this series of machine,which has excellent venting performance and good plasticization.It is suitable for PP, LD, HD, PE, HIPS, PS, ABS, PMMA, PC, PA and all types of engineering plastic.It is specially suitable for processing the reclaimed material so as to reduce the cost of product greatly.
Model | Extruder 90 | Extruder 100 | Extruder 110 | Extruder 120 | Extruder 150 |
Production (kg/hr) | 80-100 | 125-150 | 150-175/200-225 | 200-22-/250-300 | 400-500 |
Diameter of screw (mm) | 90 | 100 | 110 | 120 | 150 |
Main motor (kw) | 22.5 | 30 | 37/55 | 55/75 | 110 |
Heating Load (kw) | 15 | 18 | 22 | 32 | 40 |
Hydraulic Screen Changer (Inch/HP) | 8/3 | 8/3 | 8/3 | 10/5 | 10/5 |
L/D Ratio | 33:1 | 33:1 | 33:1 | 30:1 | 30:1 |
Heating Zone | 6 | 7 | 10 | 10 | 14 |
Rotating Speed | 50-70 | 50-70 | 50-70 | 50-70 | 50-70 |
