Home » Products » PVC Compounding Plant » Single Screw extruder for PVC Compounding

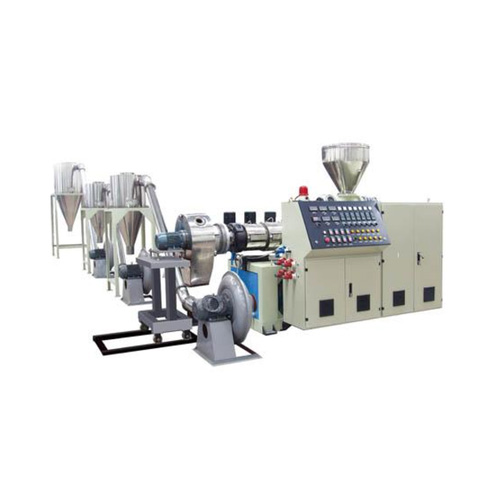

Single Screw extruder for PVC Compounding

Single Screw extruder for PVC Compounding

Price Range : 9 lacs to 22 lacs depends on production

We manufacture soft/ rigid PVC compounding line for our clients, which have the maximum plasticizing capacity of 400 kg/hr. These machines come with a maximum output of 300-325 kg/ hr.

Applications -


Technical Specifications -

Main Specifications Machine Model
HPMC 90 HPMC 100 HPMC 120
Single Screw Extruder Max. Plasticizing Capacity (kg/hr)
120 150 225
Max. Output (kg/hr)
100 140 225
Main Drive (kw)
22.5 30 45
Heating Barrel (kw) 12 15 20
Die (kw) 3 3 3
Screw Speed Variation (RPM)
20-50 20-50 20-40

The PVC Compounds offered by us superior in quality and available with following properties:
  • Good physical properties
  • Long term stability
  • Good flammability properties & resistance
  • Good electrical properties

Our PVC compounds are used in different industrial applications because of their superior performance, physical properties and special characteristics. A brief description of applications of our PVC products in different applications include.

1. Medical Applications
In medical industry, PVC compounds are used for manufacturing of flanges for Copper-T, oxygen mask, IV- Tubes, regulators, blood bags, urine bags, glucose bags, disposable tubes and more.

2. Foods &. Packaging Application
In food and packaging applications, PVC compounds can be used to produce bottles, blister packaging films, crown caps, PVC compounds are widely used in industry to manufacture appliance components, boxes,connectors, office equipment, tapes, cable insulation, sheathing, flame retardant sheathing, flame retardant - low smoke sheathing, high temperature cable applications, non migratory sheathing, welding cables, and more.

3. Industrial Application
The various industrial applications in which PVC compounds are used include Petrol tubes, profiles, co extrusion strap, hoses for fuel & oils, gaskets, sleeves, door & window profiles and sliding, H-band, fitting, lip seals, co-extrusion spiral hoses and all tailor made applications, etc.

4. Building &. Construction
In building and construction industry, PVC compounds can be used in window profile, weather stripping, conduit, pipes, window frames, pipes, and more.

5. Consumer &. Institutional
PVC compounds are also widely used in the production of - toys, novelties, bookbinding, footwear, garden hose pipe, handbags, luggage, shoe sole, etc.

Models(Groove feed Type) Pipe Range(mm) Capacity (kg/hr) Hauling Speed(max.m/min) Main Motor(kw) Total Power(kw) Line Length(m)
HPMC 65 16-63 80 15 37 80 30
HPMC 75 16-110 125 17 55 105 38
HPMC 90 63-160 160 8 75 140 50

For Applications : Click Here
