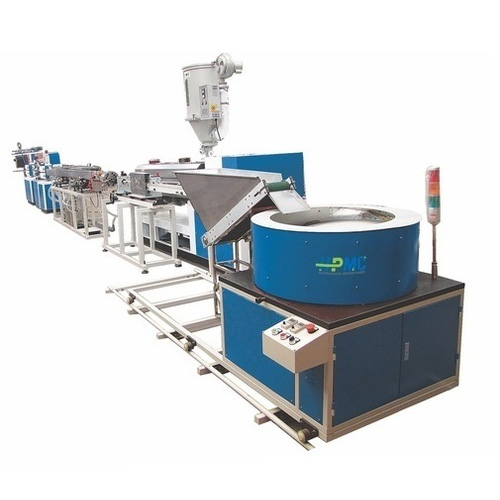

Inline Round Drip Pipe Extruder Plant

Salient Features :

Maximum line speed of 45 mts / min for 600 mm dripper spacing.
Complete line is controlled by PLC 10.3" touch panel.
Dripper insertion is controlled by high precision servo motor.
Dripper is automatically screened centrifugally before insertion.
Vacuum tank is of stainless steel 6 mtr long.
Drilling is by pneumatic rotary drill.
Haul off is equipped with pneumatic cylinders to accommodate the dripper inside the pipe while passing through it.
Haul off is controlled by two geared motors of 1.1 KW each for the perfect synchronization between two belts.
Two station winder with separate torque motor is provided which is perfectly synchronized with the line speed of the machine.

Line Speed	18 - 60 mts / min
Cylindrical drippers maximum	300/min (Servo Controlled)
Transmission Speed Selection	150 mts/min
Complete line controlled	10-3" PLC touch panel
Emitter Spacing	20 cms above set arbitrary ( variable pitch setting )
Tractor Speed	4 - 80 mts/min
Drilling Speed	90/min
High Speed Drilling	200/min
Line Length	28m/34m
Vacuum Tank	4 mtrs (Stainless steel)
Water Tank	6/6*2 (Stainless steel)
Double Station Coiler	500 mtrs - coil
Rated Power	65 Kw
