Conical Twin Screw Extruder (Single Pipe)

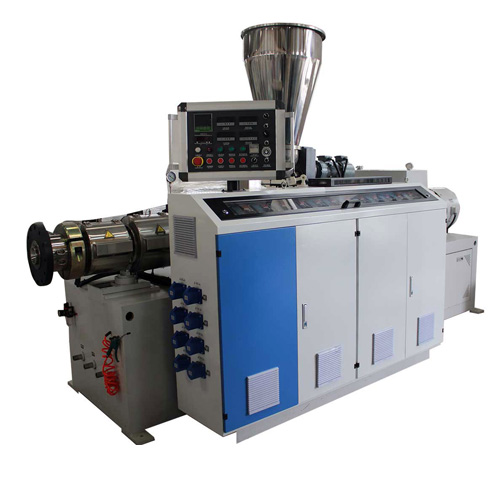

HPMC Conical Twin Screw Extruder for two die is made of high-grade steel. Efficient for low power consumption and more quantity of small and big pipes (125 kg/hr, 150 kg/hr) and available in Conical Twin Screw Extruder Models, HPMC 45/90, HPMC/51/105, HPMC 65/132, HPMC 80/156, HPMC 92/188.

Ask For Price

Product Description:

HPMC Conical twin screw extruder in the range of PVC pipe plant is available in models HPMC 45/90, HPMC/51/105, HPMC 65/132, HPMC 80/156 and HPMC 92/188. The conical twin screw extruder provides with compact and reliable gear box and equipped with bi-metallic screw & barrel for longer life and are the most suitable for manufacturing various types of PVC

Get an Instant Quote

Salient Features of Twin Screw Extruder:

Twin Screw Extruders come in an extensive range of extruders with screw diameters varying from 20mm to 150mm.
HPMC PVC Pipe Plant-Twin Screw Extruder is a Barrier design (Double thread) Screw for PVC Pipe and it performs consistent melt homogeneity, excellent and efficient process control, and stability for unmatched end-product quality and delivery.
It is designed to work according to all pelletized materials.
The output rate for polyolefin’s up to 450 Kg/hr.

Sections of Conical Twin Screw Extruder (Single Pipe)

1. Die Head

Die Head is made of high carbon content forged alloy steel for better life and performance.

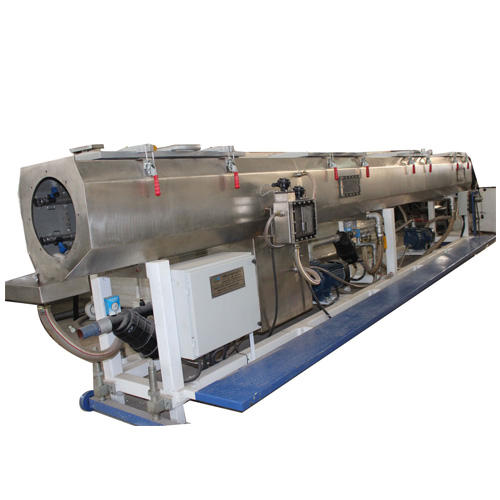

2. Spray Bath

Intensive cooling of the pipe with the help of number of spray nozzles.
Axial adjustment of tank on slide rails with locking arrangement.
Self cleaning type spray nozzles with wide openings for intensive cooling of the pipe.
Acrylic transparent cover for easy inspection has been involved and included in conical twin screw extruder for single pipe.

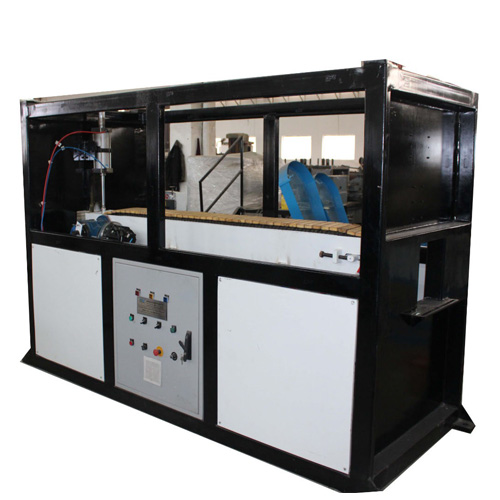

3. Caterpuller Pneuamtic Haul Off

Twin and Multi Track system
Track can be adjusted for different sizes of pipes 20mm to 315 mm
Haul-off is synchronized with extruder with the help of AC Frequency Variable Drive.
Gap between two tracks and pressure is adjusted pneumatically in the conical twin screw extruder for single pipe.
V-Groove rubber pads mounted on chain with proper tensioning to prevent becoming oval in shape even for large diameter and thin wall pipe.

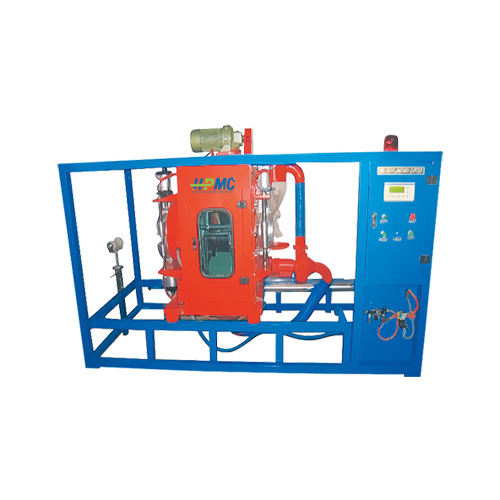

4. Planetary Cutting Saw

Planetary saw blade cutting for pipe dia upto 315 mm
Cutting is PLC controlled.
Saw dust powder sucking device.
Special hard alloy saw blade employed to cut heavy caliber thick wall pipes.

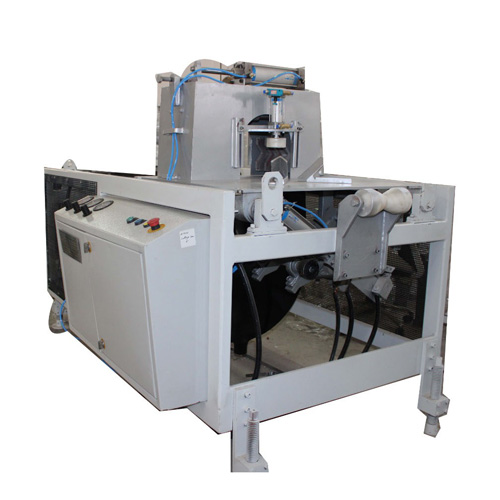

5. Automatic Cutting

Carborundum cutter for less wastage during cutting.
Smoot and clean cut are ensured with the conical twin screw extruder
All movement are equipped with pneumatic cylinders.
Clamping force can be adjusted to accomodate different wall thickness.
Limit switch is provided to sense particular length.

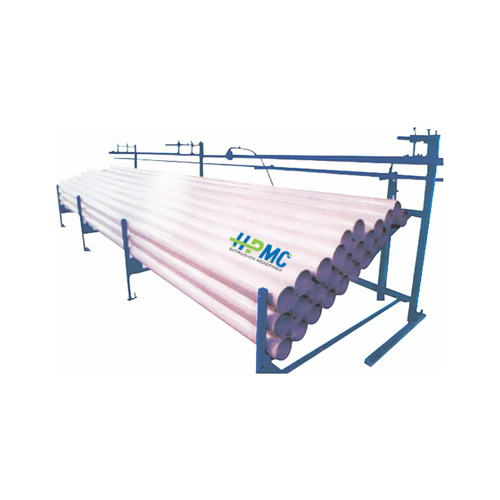

6. Tipping Chute

Operated with pneumatic cylinder and limit switch for pipe stacking for the best conical twin screw extruder working results for single pipe production .

Technical Specifications:

MACHINE MODELS	HPMC 45/90	HPMC 51/105	HPMC 55/110	HPMC 65/132	HPMC 80/156

Min Pipe OD ( mm)	16	16	16	63	110
Max Pipe OD (mm)	50	200	200	225	315
Max Plasticizing Capacity (Kg/hr)	90	170	190	300	425
Max Output (Kg/hr)	80	150	170	250	350
Main Drive (Kw)	15	18.5	22	37	55

Heating
Barrel ( Kw)	11	15	18	20	35
Die ( Kw)	3	5	5	8	12
Screw Speed Variation (RPM)	1 - 37	1 - 37	1 - 37	1 - 37	1 - 37

Vaccum Sizing Tank
Pump Drive ( KW)	2.25	2.25	2.25	-	-
Length ( Mtrs)	3.0	1.0	1.0	-	-
Water Requirement Circulating ( Ltrs/min)	400	400	400	-	-

Spray Bath
Lengh (mtrs)	3	5	5	6	6
Water Requirement Circulating( Ltrs/Min)	-	-	-	450	500
Drive Range (kw)	1.5	4	4	4	5.5

Haul Off
No. of Arms	2	2	2	2	3
Width of Belt (inch)	4	6	6	6	2.5

Cutting Saw
Saw Diameter ( mm)	300	500	500	500	200
Saw Drive Load ( KW)	0.75	1.5	1.5	1.5	2.25
